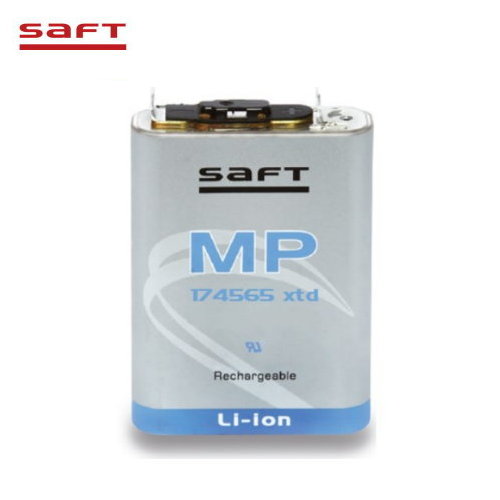

MP174565 充電鋰電池

Capacity : 4.0 Ah
Voltage : 3.65 v
Size : T18.7 * W45.3 * H68.5 (mm)

產品介紹


1. Typical capacity : 4.0 Ah
2. Nominal voltage : 3.65 V
3. Nominal energy : 14.6 Wh
4. Recommend Max. discharge current - Continuous : 8.0 A (~2C rate)
                                                                     - Pulse : 16.0 A (~4C rate)
5. Typical cut-off voltage : 2.5 V
6. Charging voltage : 4.2 V
7. Max. continuous charge current  : 4.0 A (~1C rate)
8. Operating temperatures - Charge : -30 ~ +85 oC
                                                - Discharge : -40 ~ +85 oC
9. Storage & transportation  temperatures - Recommend : +15 ~ +30 oC
                                                                             - Allowable : -40 ~ +85 oC
10. Thickness : 18.65 mm
11. Width : 45.3 mm
12. Height (including terminals) : 68.5 mm
13. Typical weight : 97 g
